Actuators

The components of capital importance (core products) of the MCT are longitudinal and rotary actuators in the range of 5 kN to 2,5 MN or 0,5 kNm to 32 kNm in standard and extraordinary types as well as special purpose testing systems using this elements.

An extraordinary detail of their design is the antifriction surface of the relevant contact areas by special developed polymer coatings. Accompanied by constant suck up of bearing oil this leads to nearly slip-stick free actuators free of any bearings at the high dynamic moved piston rods.

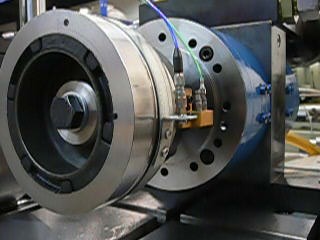

High Frequency Testing System

High Frequency Testing System

to carry out visco– elastic properties of torsional vibration dampers for chrankshafts of passenger cars

2,2kNm,+/- 5 Grad torsional angle; f-max=1200 Hz

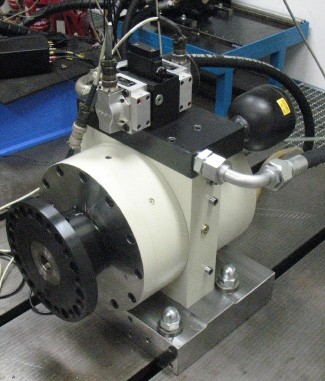

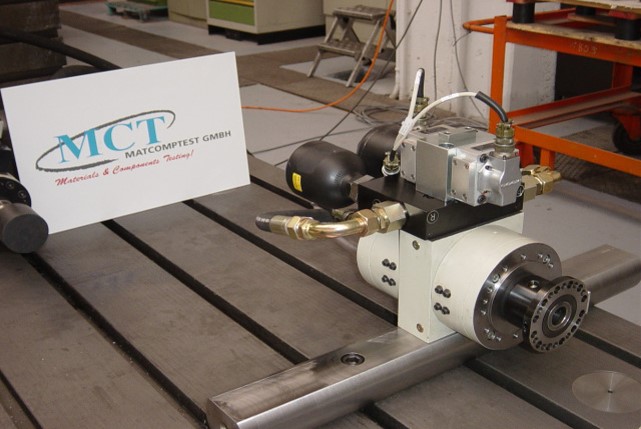

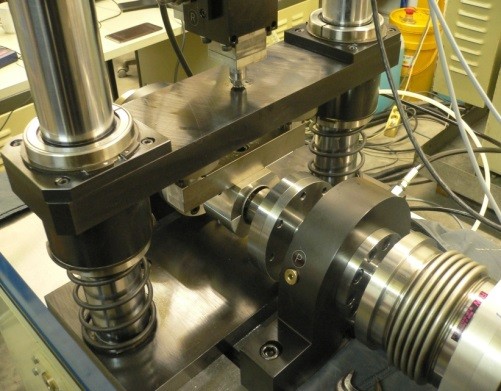

Biaxial Testing System

Dual loading elastomer test rig
Test frequency up to 50 Hz with vertical linear exciting and horizontal torsional exciting
Nominal torsional load 2 kNm Nominal amplitude +/- 20°
Nominal vertical load 5 kN Nominal amplitude +/- 15 mm

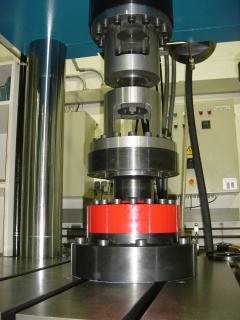

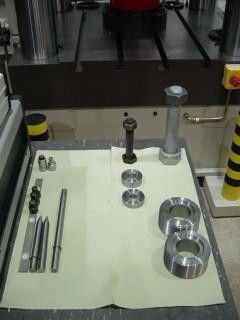

Testing System for High-Strength Boltings

630 kN / +/- 100 mm Stroke

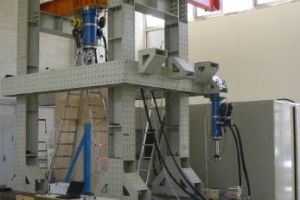

Load Frame ofHigh StaticandDynamic Stiffness

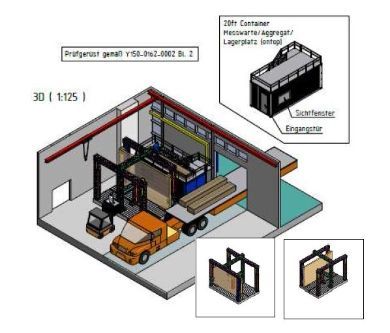

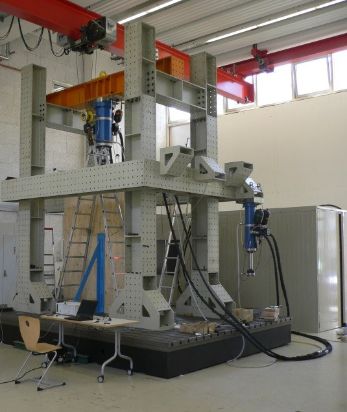

Modular Testrig MPG1000-A400

1MN Load Capacity

Equipped with 2 x 125 kN, 250 mm Stroke

and 1 x 650 kN, 250 mm Stroke

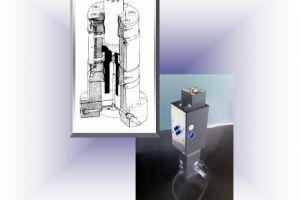

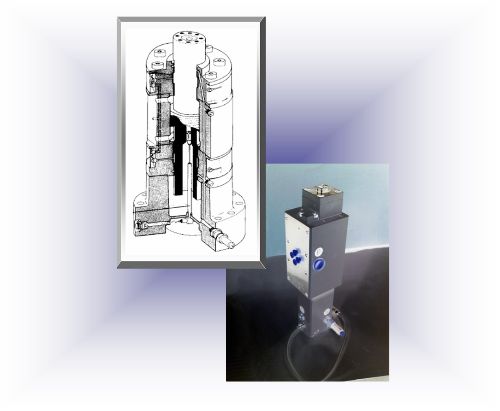

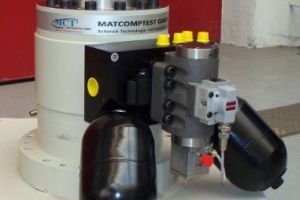

Longitudinal actuators

Longitudinal actuators, driven by servo valves, transform hydraulic

energy into mechanical energy. They are integral components of high performance servo hydraulic machines and systems for static and dynamic mechanical testing. They serve for loading any kind specimens, components and other types of test samples, applying control of force or the linear displacement under high resolution conditions.
Long life time and extreme load cause friction and wear at bearings and piston. The result on most of the standard type actuators on the market is irrecoverable damage of metal surface and destruction of components.
Polymer coated bearings and center peace of piston prevent MCT actuators from being damaged under extreme stress. In any case the actuator can be refurbished to new type conditions.
Therefore periodical service and maintenance is a prerequisite in treatment of such high precise testing equipment.

In addition to our MCT products and the well known SCHENCK–products we repair actuators of all other suppliers, such as IST*, Instron*, Inova* und MTS*.

Many years of experience in servohydraulic testing technology enables MCT stuff to perform high professional service- and maintenance work.

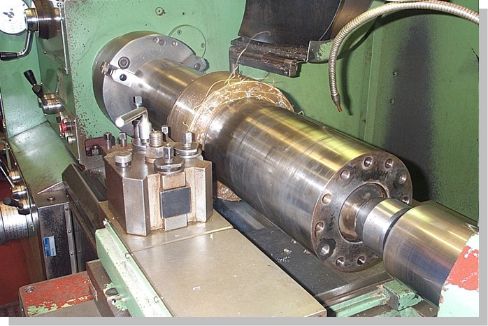

With this expertise we
dismantle the actuators accurately and determine a precise damage analysis
if the need arises we renew polymer and chromium coatings and seals.
checkout the proper function and dynamic performance in our testing lab.
